標準數字氣體壓力計和壓力比較泵套包 P5510-2700G & P5513-2700G

產品名稱: 標準數字氣體壓力計和壓力比較泵套包 P5510-2700G & P5513-2700G
產品型號: P5510-2700G & P5513-2700G
產品品牌: 美國 - 福祿克
產品特色:

?  Best-in-class accuracy of 0.02% full scale for each 2700G Reference Gauge

?  Expand lower range capability with additional 2700G Reference Gauges

?  Adaptors-provide hand tight connection-common NPT, BSP, and metric fitting types

?  Included reference gauges are battery operated and capable of using line power too

產品概述詳細說明附件/軟件相關視頻用戶手冊相關應用

P5510-2700G & P5513-2700G 標準數字氣體壓力計和壓力比較泵套包

The Fluke Calibration pneumatic calibrators are an easy-to-use alternative-traditional deadweight testers. These pressure calibrators are conveniently bundled with up-six 2700G Reference Pressure Gauges for a complete, benchtop pressure calibration solution-provide the accuracy, reliability, and capability you need-calibrate dial gauges, digital test gauges and pressure transmitters.

?  Best-in-class accuracy of 0.02% full scale for each 2700G Reference Gauge

Expand lower range capability with additional 2700G Reference Gauges

Adaptors-provide hand tight connection-common NPT, BSP, and metric fitting types

Included reference gauges are battery operated and capable of using line power too

Portable with a sturdy carrying case

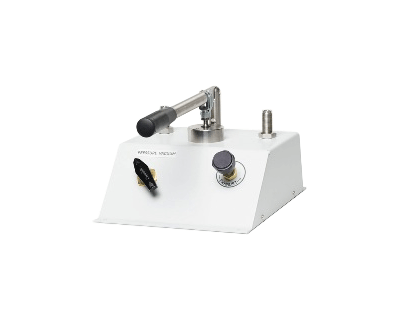

The P5510-2700G Pneumatic Pressure Calibrator has a range 0-300psi (20bar); vacuum range 0-27inHg (915mbar)

This pneumatic calibrator with a 2700G Reference Pressure Gauge is designed for testing pressure measuring instruments wherever needed, using the included 2700G as the master test gauge. This cost effective instrument is portable, manually operated, requires no external bottle, and provides robust generation of pressure and vacuum up-300psi.

P5510-2700G features

Built-in pump for generating both vacuum and positive pressure-2MPa (300psi)

Fine needle vent valve for small adjustment and venting of pressure

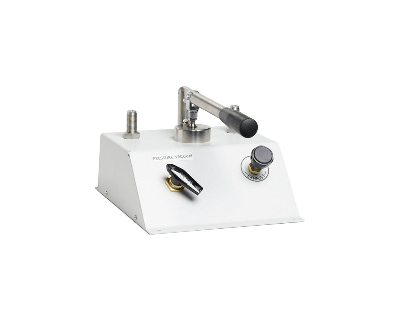

The P5513-2700G Pneumatic Pressure Calibrator has a range 0-3000psi (210bar); vacuum range 0-24inHg (800mbar)

This pneumatic comparison pressure calibrator is available with up-three 2700G Reference Pressure gauges. This cost effective instrument provides precise control for important calibration requirements and includes many features found in our popular line of pneumatic deadweight testers. With operation up-3000psi, it can be used-provide clean testing of process critical instrumentation. Note: Unit requires pressure source (i.e. nitrogen bottle) for operation.

P5513-2700G features

Robust construction allowing for operation in gas-20MPa (3000psi)

Built-in screw press for fine pressure adjustments



技術指標

Calibrator Model

Comparator

Reference Gauge

Range

1 Year Specification

Media Compatibility

P5510-2700G-1

P5510

2700G-G20M

03 000psi (020MPa)

Pressure±0.6psi(±0.004MPa)

Note 3

P5510-2700G-3

P5510

2700G-BG2M

-12300psi (-80kPa2MPa)

Pressure±0.06psi(±0.4kPa)
  Vacuum
±0.003psi(±0.02kPa)

Note 2

2700G-BG700k

-12100psi (-80kPa700MPa)

Pressure±0.02psi(±0.14kPa)
  Vacuum
±0.003psi(±0.02kPa)

Note 2

2700G-BG100K

-1515psi (-100kPa100kPa)

Pressure±0.003psi(±0.02kPa)
  Vacuum
±0.002psi(±0.016kPa)

Note 1

P5513-2700G-1

P5513

2700G-G20M

03000psi (020MPa)

Pressure±0.6psi±0.004MPa)

Note 3

P5513-2700G-3

P5513

2700G-G20M

03000psi (020MPa)

Pressure±0.6psi(±0.004MPa)

Note 3

2700G-BG7M

-121000psi (-80kPa7MPa)

Pressure±0.2psi(±0.0014MPa)
  Vacuum
±0.003psi(±0.02kPa)

Note 2

2700G-BG700M

-121000psi  (–80kPa7MPa)

Pressure±0.02psi(±0.14MPa)
  Vacuum
±0.003psi(±0.02kPa)

Note 2

Media compatibility
  Note 1: Any clean, dry non-corrosive gas
  Note 2: Any liquids or gases compatible with 316 stainless steel
  Note 3: Any non-flamable, non-toxic, non-explosive, non-oxidizing liquid or   gas compatiable with 316 stainless steel


Specifications for   P5510-2700G

Specifications for   P5513-2700G

Pressure Range

0-300psi (20 bar)

Pressure Range

0-3000psi (210 bar)

Test Port Adapters

(2 sets) 1/8, 1/4,   3/8 and 1/2 NPT or BSP

Test Port Adapters

(2 sets) 1/8, 1/4,   3/8 and 1/2 NPT or BSP

Instrument Size  (WxDxH)

9.5x13x7in  (240x330x180mm)

Instrument Size (WxDxH)

17.5x12x8.5in  (440x300x215mm)

Instrument Weight

7.5 lb (3.5 kg)

Instrument Weight

17lb (8kg)

Vacuum Range

0-24 inHg (800 mbar)

Gas Supply   Connection

1/4 NPT female


Mechanical   specifications of 2700G

Dimensions (HxWxD)

12.7cm x 11.4cm x 3.7cm (5 in x 4.5 in x 1.5 in)

Pressure connection

? in NPT Male

Housing/weight

Cast  ZNAL/0.56 kg (1.22 lb)

Display

5-1/2 digits, 16.53 mm (0.65 in) high 20-segment bar graph, 0-100 %

Power

Three  AA alkaline batteries

Battery life

75 hours












型號和配件

型號

描述

P5510-2700G-1

標準數字壓力計和壓力比較泵套包。包含:

比較泵:P5510

壓力計:BG2M

P5510-2700G-1/C

P5510   Pneumatic Calibrator, 2 MPa (300 psi), 1 Gauge Accredited

P5510-2700G-3

標準數字壓力計和壓力比較泵套包。包含:

比較泵:P5510

壓力計:BG2M+BG700K+BG100K

P5510-2700G-3/C

P5510   Pneumatic Calibrator, 2 MPa (300 psi), 3 Gauges Accredited

P5513-2700G-1

標準數字壓力計和壓力比較泵套包。包含:

比較泵:P5513

壓力計:G20M

P5513-2700G-1/C

P5513   Pneumatic Calibrator, 20 MPa (3000 psi), 1 Gauge Accredited

P5513-2700G-3

標準數字壓力計和壓力比較泵套包。包含:

比較泵:P5513

壓力計:G20M+BG7M+BG700K

P5513-2700G-3/C

P5513   Pneumatic Calibrator, 20 MPa (3000 psi), 3 Gauges Accredited
