產品名稱：	參考壓力監測器 Fluke RPM4 BA100K
產品型號：	Fluke RPM4 BA100K
產品品牌：	美國 - 福祿克
產品特色：	· Transfer standard level measurement uncertainty, ± 0.01% of reading (± 0.008% for dual channel mode) · Single channel or dual channel with parallel measurementmode to reduce uncertainty and increase reliability · Large, easy to read display · RS232 and IEEE-488 interfaces included

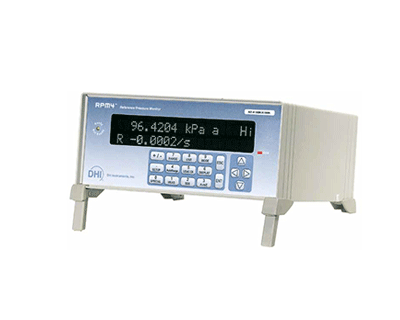

Fluke RPM4 BA100K 參考壓力監測器

The RPM4 BA100K is a full function laboratory quality barometer intended to measure atmospheric pressure with the very highest performance. Its outstanding pressure measurement specifications are made possible by DHI's exclusive quartz reference pressure transducer (Q-RPT) modules.

· Transfer standard level measurement uncertainty, ± 0.01% of reading (± 0.008% for dual channel mode)

· Single channel or dual channel with parallel measurementmode to reduce uncertainty and increase reliability

· Large, easy to read display

· RS232 and IEEE-488 interfaces included

· On-board functions including adjustable average time, high/low, deviation from set point, rate, freeze

· A2LA accredited calibration included at no extra cost, internationally recognized through ILAC, APLAC, EA and IAAC

· Ideal for absolute pressure AutoZeroing of pressure transfer standards and molbox flow terminals

· Compact and rugged presentation

· Optional battery pack

· 1 week delivery from factory

技術指標

	RPM4 BA100K (Single Channel)	RPM4 BA100K/BA100K (Dual Channel)
Range	70kPa～110kPa (10psia～16psia)
Power requirements	85Vac～264Vac, 50/60Hz; 12Vdc, 1.2A (battery)
Weight	5kg (11 lb)
Dimensions (H x W x D)	10cm x 22.7cm x 24cm (3.9 in. x 8.9 in. x 9.5 in.)
Test port connections	1/8in NPT F
Communications ports	RS232 (COM1, COM2), IEEE-488.2 Resolution To 1ppm, user adjustable To 1ppm, user
Resolution	To 1ppm, user adjustable
Operating temperature	15°C～35°C (59°F～95°F)
Warm up time	30 minute temperature stabilization recommended from cold power up
Vibration	Meets MIL-T-28800D
Predicted Stability ¹	± 0.005% of reading	± 0.0032% of reading
Precision ²	± 0.008% of reading	± 0.006% of reading
Measurement Uncertainty ³	± 0.01% of reading	± 0.008% of reading
1、Predicted Q-RPT measurement stability limit (k=2) over one year assuming regular use of AutoZero function. AutoZero is performed by the operator by comparison with a barometric reference in absol mode. Absolute mode predicted one year stability without AutoZ is: Single Channel ± (5Pa + 0.005% of reading), D Channel ± (4Pa + 0.0032% of reading). 2、Combined linearity, hysteresis, repeatability. 3、Maximum deviation of the Q-RPT indication from the true value of applied spressure including precision, predicted one year stability limit, temperature effect and calibration uncertainty, combined and expanded (k=2) following the ISO “Guide to the Expression of Uncertainty in Measurement.”

型號和配件

型號	描述
Fluke RPM4 mhhhac/mlllac	參考壓力監測器位置：mhhhac 指示高位 Q-RPT的名稱。C指示Q-RT 類別（s 對應標準，p 對應高級） mlllac指示低位 Q-RPT的名稱和類別。如果沒有低位Q-RPT 則留空。請參閱可用Q-RPT 的功能下方的Q-RPT 和范圍表。
RPM4 04	-1 美版設備，-2 SI 版設備
RPM4 05	CE 標志
RPM4 06	特別校準
RPM4 07	專用測試液，高位 Q-RPT（特殊液體）
RPM4 08	專用測試液，低位 Q-RPT（特殊液體）
RPM4 09	-1 特殊配置，空氣數據（僅限于 A160K/A160K、A350K/A160K）
配件	描述
電池組/充電器	12V 直流電電池，帶充電器
機架安裝套件	標準 19in 機架安裝工具機架
腳踏開關	遠程 [ENTER] 腳踏開關（部件號 3070940）
MPC1-3000	手動操作的氣壓控制器，壓力量程從真空到 20 MPa (3,000 psi)
MPC1-1000	手動操作的氣壓控制器，壓力量程真空可達到 7 MPa (1,000 psi)
GPC1-16000 / GPC1-10000	手動氣壓控制器
MPG1-200M 402122	手動液壓發生器/控制器，200MPa（30,000psi）
MPG2-H	高壓液體調節器，最高至200MPa（30,000psi）
OPG1-30000	液壓壓力發生器包括：癸二酸酯（合成油）、用于連接到 PG7302 或 RPM4 的外管/適配器以及操作和維護手冊。
PK-7000-PPC/MPC	互聯套件 - 將 PG7102 連接至 PPC 或 MPC 壓力控制器和被測設備。
